DCEC EQB / B Automotive Engine
DCEC EQB / B series automotive engine is four-strokes engine with 102 mm bore and 120 mm stroke, Equipped with Bosch (or BYC or Weifu) pump. engine comes with turbocharger and Air- Air intercooler. The prime power range is from 140 HP to 235 HP.
As part of EMAC, DuraMac provides complete powertrain that integrated with DCEC engine, Fast-Eaton clutch, FAST-CAT transmission, Dongfeng-DANA axle and Komman air suspension, while the electrification of automobile is the certain future, Duramac also get involved with EV powertrain system. We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from trouble shooting to overhaul technical support.
DCEC EQB / B series electronic automotive engine can reach upto EU Stage VI emission standard, the number 30/40/50/60 are the emission standard mark of engine, which means engine emission standard are EU Stage III, IV, V, VI. For different emission standard DCEC EQB / B electronic series automotive engine, the engine itself are the same, the major different are the after-treatment system and ECU program, EMAC will keep updating products introduction page of different emission standard version engines, welcome to subscribe our website to get latest update information.
If you are in need of engine model that not available on our website for the moment, please contact EMAC sales team for technical details and related documents, our well trained sales and engineering team will help you with all products and techical documents available here at DCEC.
General Specifications of EQB / B Series
| Engine Type: | 4 – 6 Cylinders |
| Displacement: | 3.9 – 5.9 L |
| Bore * Stroke: | 102 mm * 120 mm |
| Advertised Power: | 140 – 235 HP @ 2500 – 2800 RPM |
| Peak Torque: | 410 – 800 N.m @ 1300 -1600 RPM |
| Rated Speed: | 2500 – 2800 RPM |
| Emission Standards: | Euro II – Euro III |
| Aspiration Method: | Turbocharged & Air-Air Intercooler |
| Wet Weight: | 431 – 453 kg |
| Dimension(L * W * H): | 1000 mm * 800 mm * 1100 mm |
Engine Model | Rated Power | Peak Torque | Engine Model | Rated Power | Peak Torque | ||
| B140-33 | 140 HP @ 2500 RPM | 502 N.m @ 1500 RPM | B170-33 | 170 HP @ 2500 RPM | 560 N.m @ 1300 RPM | ||
| B190-33 | 190 HP @ 2500 RPM | 640 N.m @ 1300-1500 RPM | B210-33 | 210 HP @ 2500 RPM | 700 N.m @ 1500 RPM | ||
| EQB125-20 | 125 HP @ 2800 RPM | 410 N.m @ 1500 RPM | EQB140-20 | 140 HP @ 2700 RPM | 502 N.m @ 1500 RPM | ||
| EQB160-20 | 160 HP @ 2500 RPM | 565 N.m @1500~1600 RPM | EQB170-21 | 170 HP @ 2500 RPM | 560 N.m @ 1300 RPM | ||
| EQB180-20A | 180 HP @ 2500 RPM | 610 N.m @ 1500 RPM | EQB180-20B | 180 HP @ 2500 RPM | 610 N.m @ 1500 RPM | ||
| EQB190-20 | 190 HP @ 2800 RPM | 650 N.m @ 1400 RPM | EQB190-21 | 190 HP @ 2500 RPM | 640 N.m @ 1300-1500 RPM | ||
| EQB210-20A | 210 HP @ 2500 RPM | 700 N.m @ 1500 RPM | EQB210-20B | 210 HP @ 2500 RPM | 700 N.m @ 1500 RPM | ||
| EQB235-20 | 235 HP @ 2500 RPM | 800 N.m @ 1600 RPM | |||||
| ——END—— | |||||||
DCEC EQB / B Series Automotive Engine
This is the list of all series of DCEC EQB / B Series Automotive Engine.
Click here to find automotive engines by type (Fuel System & Emission Standard).
XBD-LPD 2HC522 (100LPDC) Fire Pump
N/A
XBD-FS 2GC57.5 (80 mm × 65 mm) Fire Pump
flow：7-240 L/S
Lift：30.6-148 m
power：4-3115 kW
Rotating speed：1480-2900 r/min
GSC
EBARA GSC General Pump GSC Pump Sets is Horizontal end suction pump, Equipped with IE3 high-efficiency motors that comply with EuP 2005/32/EC and ErP 2009/125/EC directives,The motor flow range is 297 m, and the flow rate is 240 m³/h. If you are in need of engine...

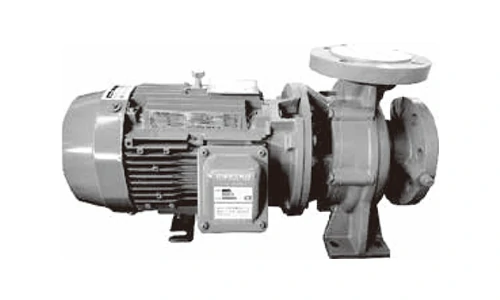

FSDC
EBARA FSDC General Pump FSDC Pump Sets is Horizontal end suction pump, Equipped with IE3 high-efficiency motors that comply with EuP 2005/32/EC and ErP 2009/125/EC directives,The motor flow range is 297 m, and the flow rate is 240 m³/h. If you are in need of engine...

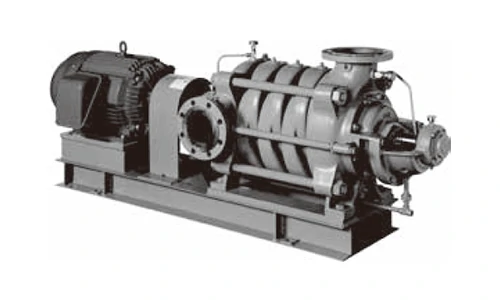

MS420
