EBARA SAL Mud pump
SAL Pump Sets is Horizontal end suction pump, Equipped with IE3 high-efficiency motors that comply with EuP 2005/32/EC and ErP 2009/125/EC directives,The motor flow range is 297 m, and the flow rate is 240 m³/h.
If you are in need of engine model that not available on our website for the moment, please contact EMAC sales team for technical details and related documents, our well trained sales and engineering team will help you with all products and techical documents available here at EBARA.
As part of EMAC, PumpMac provides abundant premium pump-driven power pack options, WPT PTO, Advance gearbox and pump head, as well as customized water pump set. We also have a set of NFPA20 standard engine power pack accessories including air intake shut-off valve, DC contactor, engine control panel, jacket water heater etc. We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from trouble shooting to overhaul technical support.
EBARA has 40 years of technology accumulation and nearly 100 patented technologies. It adopts the world’s most advanced control method – terminal intelligent voltage stabilization control without negative pressure (pipeline network superposition) constant pressure variable frequency control energy saving. Through fuzzy control method, it realizes the small water stop function. Rich display content: pressure, frequency, current, voltage, running pump, automatic manual, fault alarm, etc.
SAL is mainly used for water treatment – reverse osmosis systems, distillation systems, filtration, mild chemical applications Industrial cleaning systems – vehicle washing, bottle and glassware washing, parts washing, crate washing, metal parts cleaning and trimming, vegetable washing machines and seafood washing applications, fire protection systems Heating and air conditioning – hot water circulation, cooling systems, industrial boilers Water supply and boosting – boosting, lathes Agricultural irrigation – farmland irrigation, sprinkler irrigation, drip irrigation, EMAC will keep updating products introduction page of different emission standard version Pumps, welcome to subscribe our website to get latest update information.
General Specifications of SAL Series
| Maximum Working Pressure: | 10bar(10.2kgf/c㎡) |
| Pumping medium/Medium Properties | Slurry containing particles |
| Pumping medium/Medium temperature: | 0~80℃ |
| Structure/Impeller: | Semi-open impeller with back blades |
| Structure/Shaft seal: | Packing seal |
| Structure/Flushing method: | External flushing/Mechanical seal |
| Structure/Bearings: | Sealed ball bearings (EFG)/Oil-lubricated ball bearings (HJ) |
| Flange: | GB/T 17241.6/JIS 10K /DIN 10bar |
| Material/Pump body: | Low chromium cast iron |
| Material/Impeller: | High chromium cast iron |
| Material/Spindle: | 20Cr13(EFG type), 45#(HJ type) |
| Material/Bushing: | 20Cr13/06Cr17Ni12Mo2/316C |

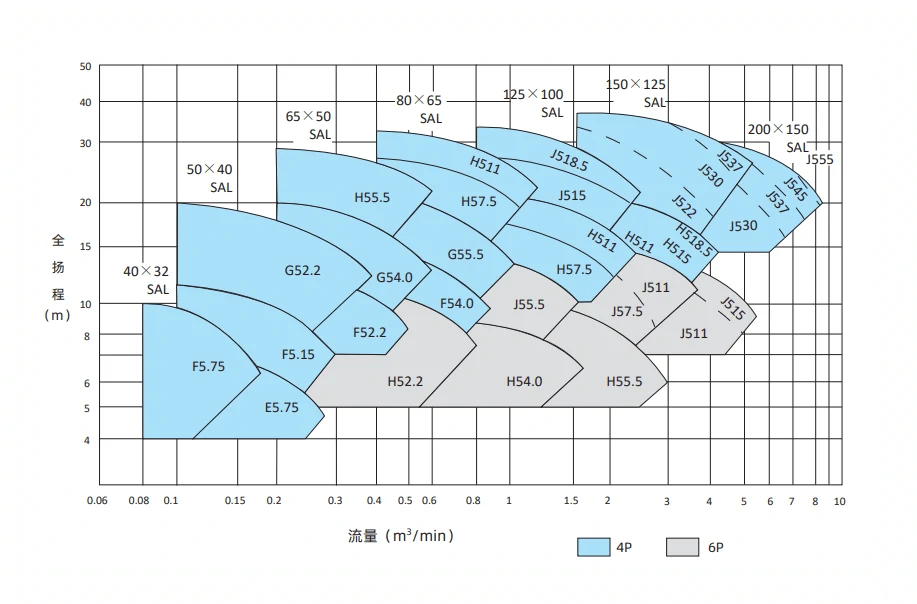

SAL Mud Pump Lift diagram
| 40mm×32mm | SALF5.57 | |||
| 50mm×40mm | SALE5.75 | SALF51.5 | SALG52.2 | |
| 65mm×50mm | SALF52.2 | SALG54.0 | SALH55.5 | |
| 80mm×65mm | SALF54.0 | SALG55.5 | SALH57.5 | SALH511 |
| SALH52.2 | ||||
| 125mm×100mm | SALH57.5 | SALH511 | SALH54.0 | SALJ515 |
| SALJ518.5 | SALJ55.5 | |||
| 150mm×125mm | SALH511 | SALH515 | SALH518.5 | SALH55.5 |
| SALJ522 | SALJ530 | SALJ537 | SALJ57.5 | |
| SALJ511 | ||||
| 200mm×150mm | SALJ530 | SALJ537 | SALJ545 | SALJ555 |
| SALJ511 | SALJ515 | |||

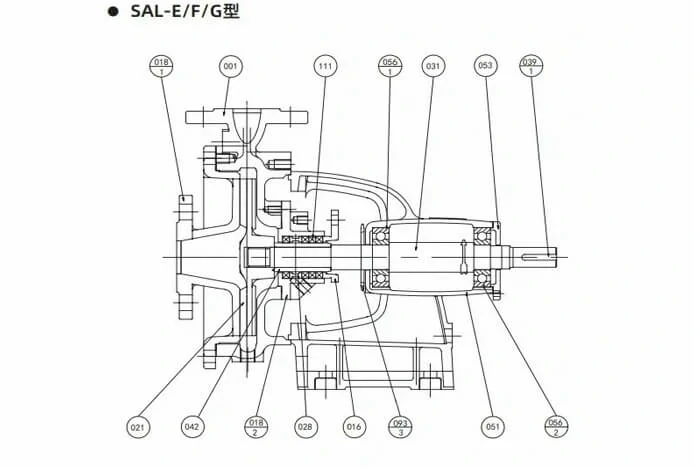

SAL Mud Pump Structure diagram
| Serial number | Part Name | quantity | Material |
| 111 | Packing seal | 4 | Carbonized Fiber |
| 001 | Pump casing | 1 | LCrFC |
| 016 | Packing gland | 1 | HT250 |
| 018-1 | Suction gland | 1 | LCrFC |
| 018-2 | Filling cavity | 1 | HT250 |
| 021 | impeller | 1 | HCrFC |
| 028 | Water seal ring | 1 | 06Cr19Ni10 |
| 031 | Spindle | 1 | 2Cr13 |
| 039-1 | key | 1 | 50# |
| 042 | Bushing | 1 | 2Cr13 |
| 051 | Bearing body | 1 | HT250 |
| 053 | Bearing gland | 1 | HT250 |
| 056-1 | Ball bearings | 1 | – |
| 056-2 | Ball bearings | 1 | – |
| 093-3 | Water Ring | 1 | NBR |
EBARA SAL Mud Pumps
SAL SALJ555 (200 mm × 150 mm) Process Pumps
Power: 55 kW
Synchronous speed: 1500 min⁻¹
Motor model: 2-M63X1.5
Total size: 2047 L
SAL SALJ545 (200 mm × 150 mm) Process Pumps
Power: 45 kW
Synchronous speed: 1500 min⁻¹
Motor model: 2-M50X1.5
Total size: 1989 L
SAL SALJ537 (200 mm × 150 mm) Process Pumps
EBARA SAL J537 Mud Pump Special Design, including Mud Pump Wastewater Discharge Fishery Seawater Paper and Pulp Industry Pump Global Network Contact Features and Benefits • Special design, 200 × 150 Mud Pump, overall size is 1964 mm. SAL J537 main engine and impeller...
SAL SALJ530 (200 mm × 150 mm) Process Pumps
Power: 30 kW
Synchronous speed: 1500 min⁻¹
Motor model: 2-M50X1.5
Total size: 1914 L
SAL SALJ537 (150 mm × 125 mm) Process Pumps
Power: 37 kW
Synchronous speed: 1500 min⁻¹
Motor model: 2-M50X1.5
Total size: 1739 L
SAL SALJ530 (150 mm × 125 mm) Process Pumps
Power: 30 kW
Synchronous speed: 1500 min⁻¹
Motor model: 2-M50X1.5
Total size: 1914 L
SAL SALJ522 (150 mm × 125 mm) Process Pumps
Power: 22 kW
Synchronous speed: 1500 min⁻¹
Motor model: 2-M32X1.5
Total size: 1577 L
SAL SALJ515 (200 mm × 150 mm) Process Pumps
Power: 15 kW
Synchronous speed: 1000 min⁻¹
Motor model: 2-M32X1.5
Total size: 1802 L
SAL SALJ511 (200 mm × 150 mm) Process Pumps
Power: 11 kW
Synchronous speed: 1000 min⁻¹
Motor model: 2-M32X1.5
Total size: 1752 L
SAL SALH518.5 (150 mm × 125 mm) Process Pumps
EBARA SAL H518 Mud Pump Special Design, including Mud Pump Wastewater Discharge Fishery Seawater Paper and Pulp Industry Pump Global Network Contact Features and Benefits • Special design, 150 × 125 Mud Pump, overall size is 1586 mm. SAL H518 main engine and impeller...
SAL SALH515 (150 mm × 125 mm) Process Pumps
Power: 15 kW
Synchronous speed: 1500 min⁻¹
Motor model: 2-M32X1.5
Total size: 1527 L
SAL SALH511 (150 mm × 125 mm) Process Pumps
Power: 11 kW
Synchronous speed: 1500 min⁻¹
Motor model: 2-M32X1.5
Total size: 1477 L
SAL SALJ511 (150 mm × 125mm) Process Pumps
Power: 11 kW
Synchronous speed: 1000 min⁻¹
Motor model: 2-M32X1.5
Total size: 1527 L
SAL SALJ57.5 (150 mm × 125 mm) Process Pumps
Power: 7.5 kW
Synchronous speed: 1000 min⁻¹
Motor model: 2-M32X1.5
Total size: 1477 L
SAL SALJ518.5 (125 mm × 100 mm) Process Pumps
Power: 18.5 kW
Synchronous speed: 1500 min⁻¹
Motor model: 2-M32X1.5
Total size: 1546 L
SAL SALJ515 (125 mm × 100 mm) Process Pumps
Power: 15 kW
Synchronous speed: 1500 min⁻¹
Motor model: 2-M32X1.5
Total size: 1487 L
SAL SALH511 (125 mm × 100 mm) Process Pumps
Power: 11 kW
Synchronous speed: 1500 min⁻¹
Motor model: 2-M32X1.5
Total size: 1302 L
SAL SALH57.5 (125 mm × 100 mm) Process Pumps
Power: 7.5 kW
Synchronous speed: 1500 min⁻¹
Motor model: 2-M25X1.5
Total size: 1210 L
SAL SALH511 (80 mm × 65 mm) Process Pumps
Power: 11 kW
Synchronous speed: 1500 min⁻¹
Motor model: 2-M32X1.5
Total size: 1257 L
SAL SALH57.5 (80 mm × 65 mm) Process Pumps
Power: 7.5 kW
Synchronous speed: 1500 min⁻¹
Motor model: 2-M25X1.5
Total size: 1165 L
SAL SALJ55.5 (125 mm × 100 mm) Process Pumps
Power: 5.5 kW
Synchronous speed: 1000 min⁻¹
Motor model: 2-M25X1.5
Total size: 1345 L
SAL SALH55.5 (150 mm × 125 mm) Process Pumps
Power: 5.5 kW
Synchronous speed: 1000 min⁻¹
Motor model: 2-M25X1.5
Total size: 1385 L
SAL SALH54.0 (125 mm × 100 mm) Process Pumps
Power: 4.0 kW
Synchronous speed: 1000 min⁻¹
Motor model: 2-M25X1.5
Total size: 1210 L
SAL SALG55.5 (80 mm × 65 mm) Process Pumps
Power: 5.5 kW
Synchronous speed: 1500 min⁻¹
Motor model: 2-M25X1.5
Total size: 1008 L
SAL SALH55.5 (65 mm × 50 mm) Process Pumps
Power: 5.5 kW
Synchronous speed: 1500 min⁻¹
Motor model: 2-M25X1.5
Total size: 1103 L
SAL SALF54.0 (80 mm × 65 mm) Process Pumps
Power: 4.0 kW
Synchronous speed: 1500 min⁻¹
Motor model: 2-M25X1.5
Total size: 980 L
SAL SALG54.0 (65 mm × 50 mm) Process Pumps
Power: 4.0 kW
Synchronous speed: 1500 min⁻¹
Motor model: 2-M25X1.5
Total size: 980 L
SAL SALH52.2 (80 mm × 65 mm) Process Pumps
Power: 2.2 kW
Synchronous speed: 1000 min⁻¹
Motor model: 2-M25X1.5
Total size: 1090 L
SAL SALG52.2 (50 mm × 40 mm) Process Pumps
Power: 2.2 kW
Synchronous speed: 1500 min⁻¹
Motor model: 1-M25X1.5
Total size: 879 L
SAL SALF52.2 (65 mm × 50 mm) Process Pumps
Power: 2.2 kW
Synchronous speed: 1500 min⁻¹
Motor model: 1-M25X1.5
Total size: 964 L
SAL SALF51.5 (50 mm × 40 mm) Process Pumps
Power: 1.5 kW
Synchronous speed: 1500 min⁻¹
Motor model: 1-M25X1.5
Total size: 809 L
SAL SALE5.75 (50 mm × 40 mm) Process Pumps
Power: 0.75 kW
Synchronous speed: 1500 min⁻¹
Motor model: 1-M25X1.5
Total size: 757 L
SAL SALF5.75 (40 mm × 32 mm) Process Pumps
Power: 0.75 kW
Synchronous speed: 1500 min⁻¹
Motor model: 1-M25X1.5
Total size: 737 L
